Boat Models
Updated on: 11 November, 2007

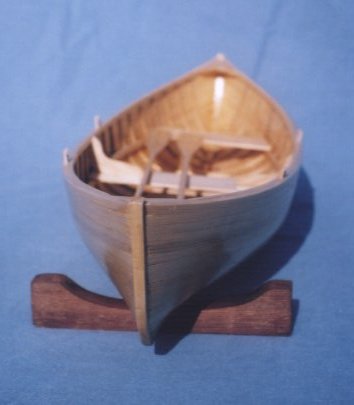

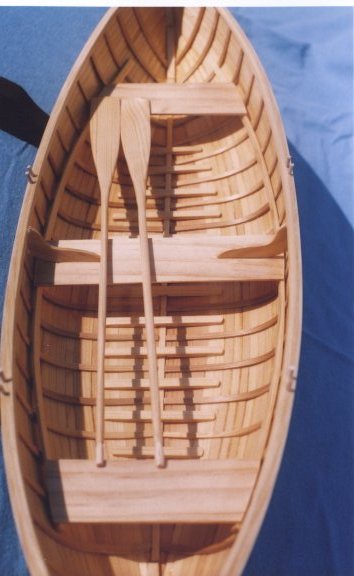

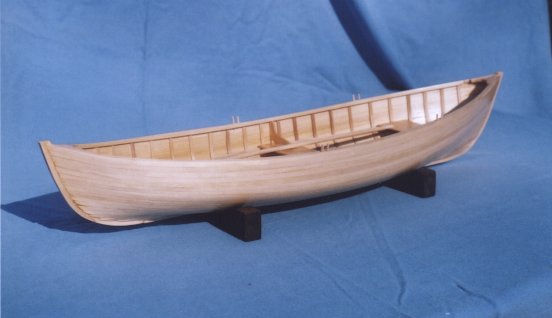

| I finished this peapod model in January 2006. It is another boat from Dynamite Payson’s model building book. | This model is made from white pine, re-sawn from 1×8. The oarlocks are from toothpicks. I started it at Thanksgiving and built it while I was using up 2 weeks of vacation. | Getting the planks to stay tight to the mold was the biggest problem. I had discarded two earlier starts. |

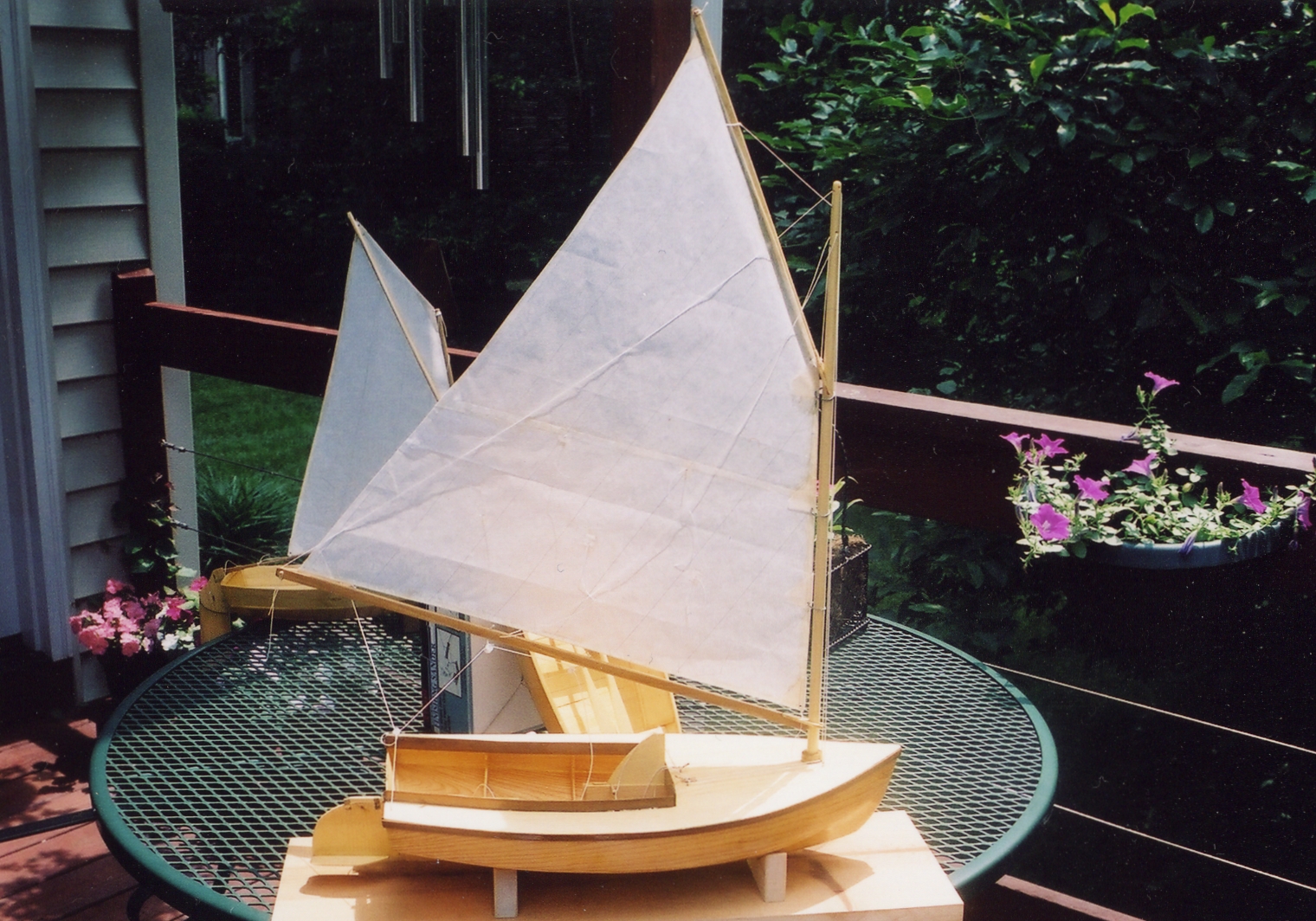

| The Bobcat is fromDynamite Payson’s model building book. | This model is made mostly from white pine, re-sawn from 1×8. White pine is easy to work and gives a pleasant appearance when varnished. The coaming and rub rail are red cedar. I call it faux mahagony. | Cutting the deck as one piece was a bit of trick. My table saw cuts to 3 1/2 inches, the deck is about 6 inches wide. |

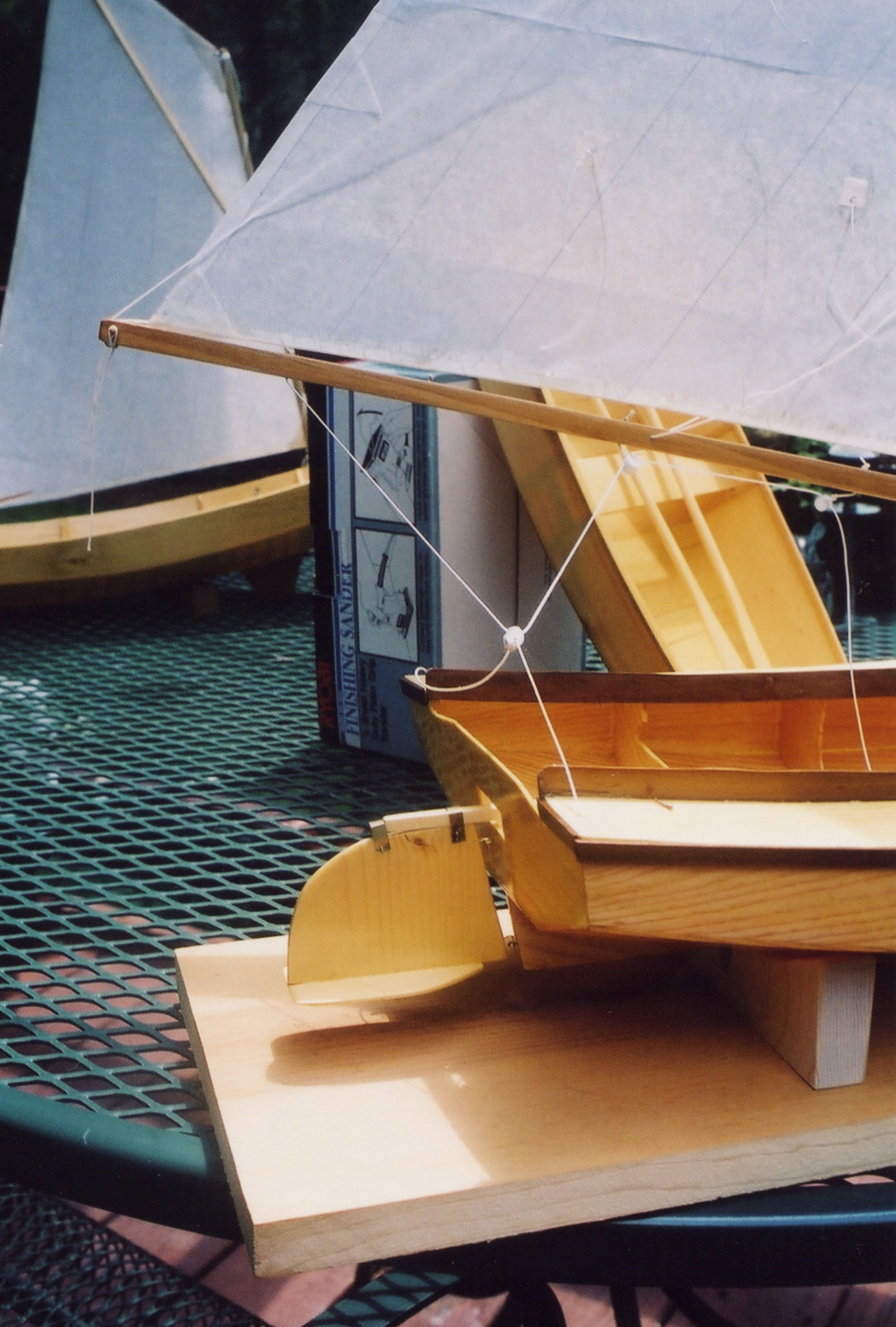

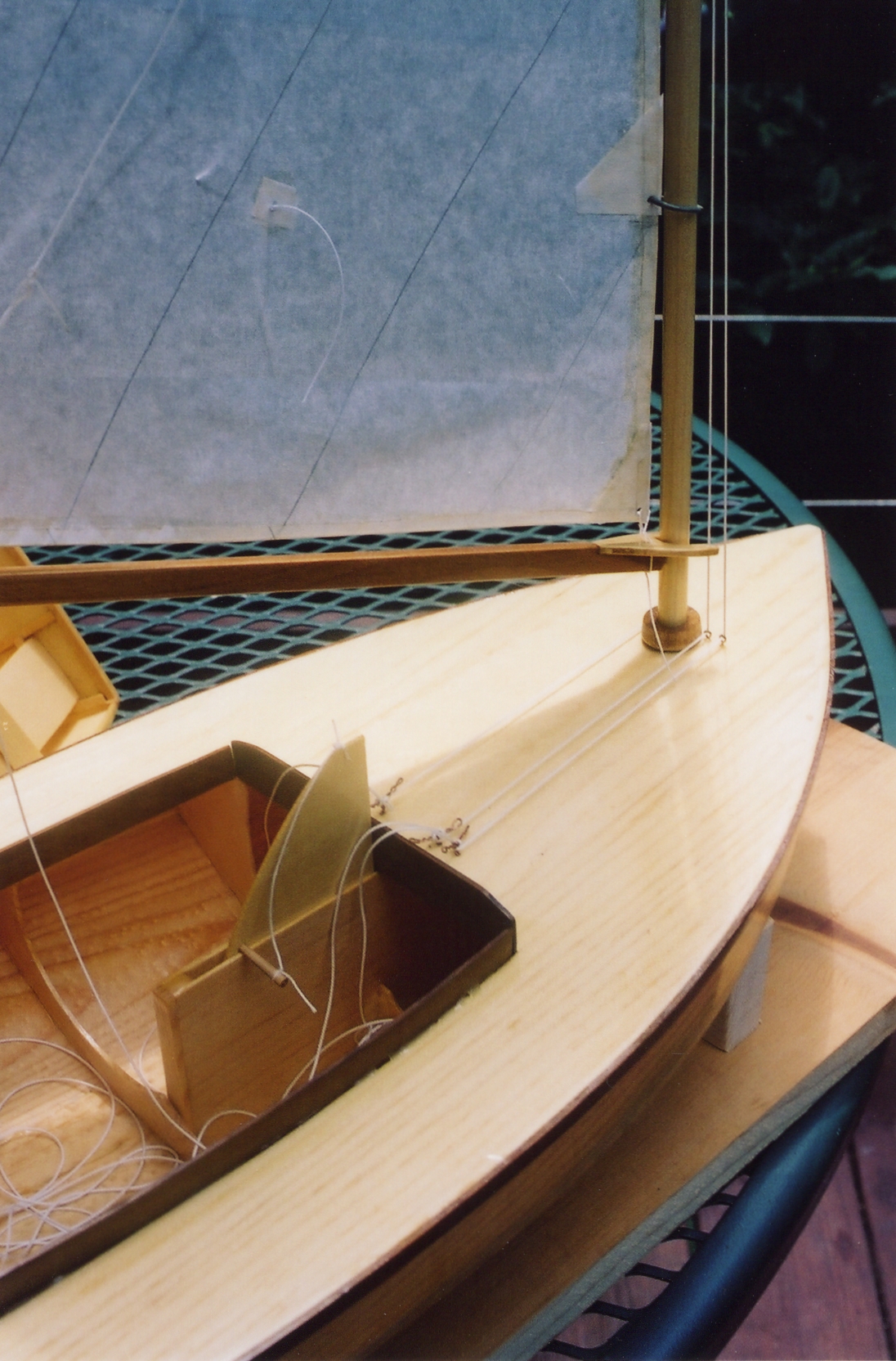

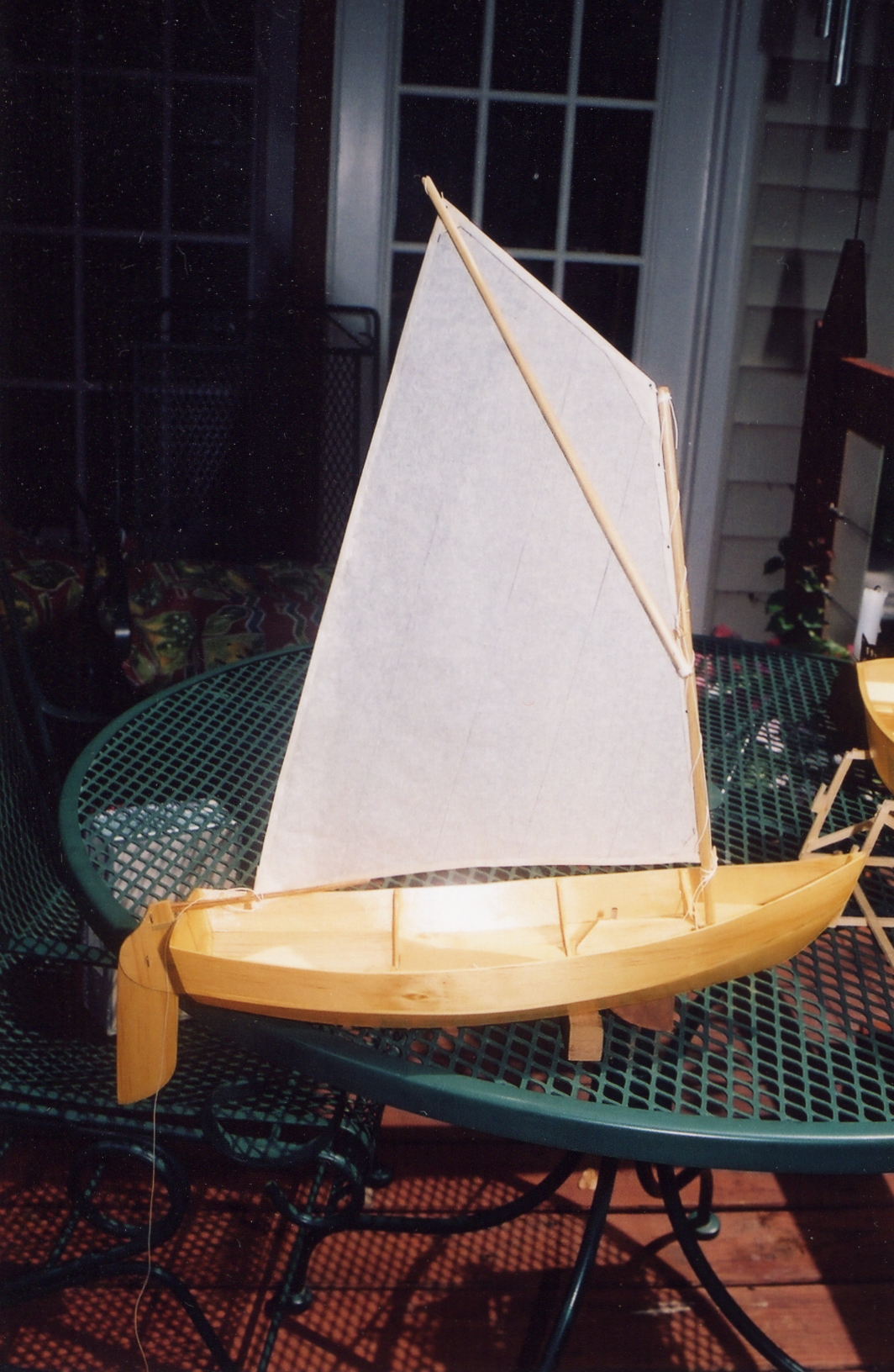

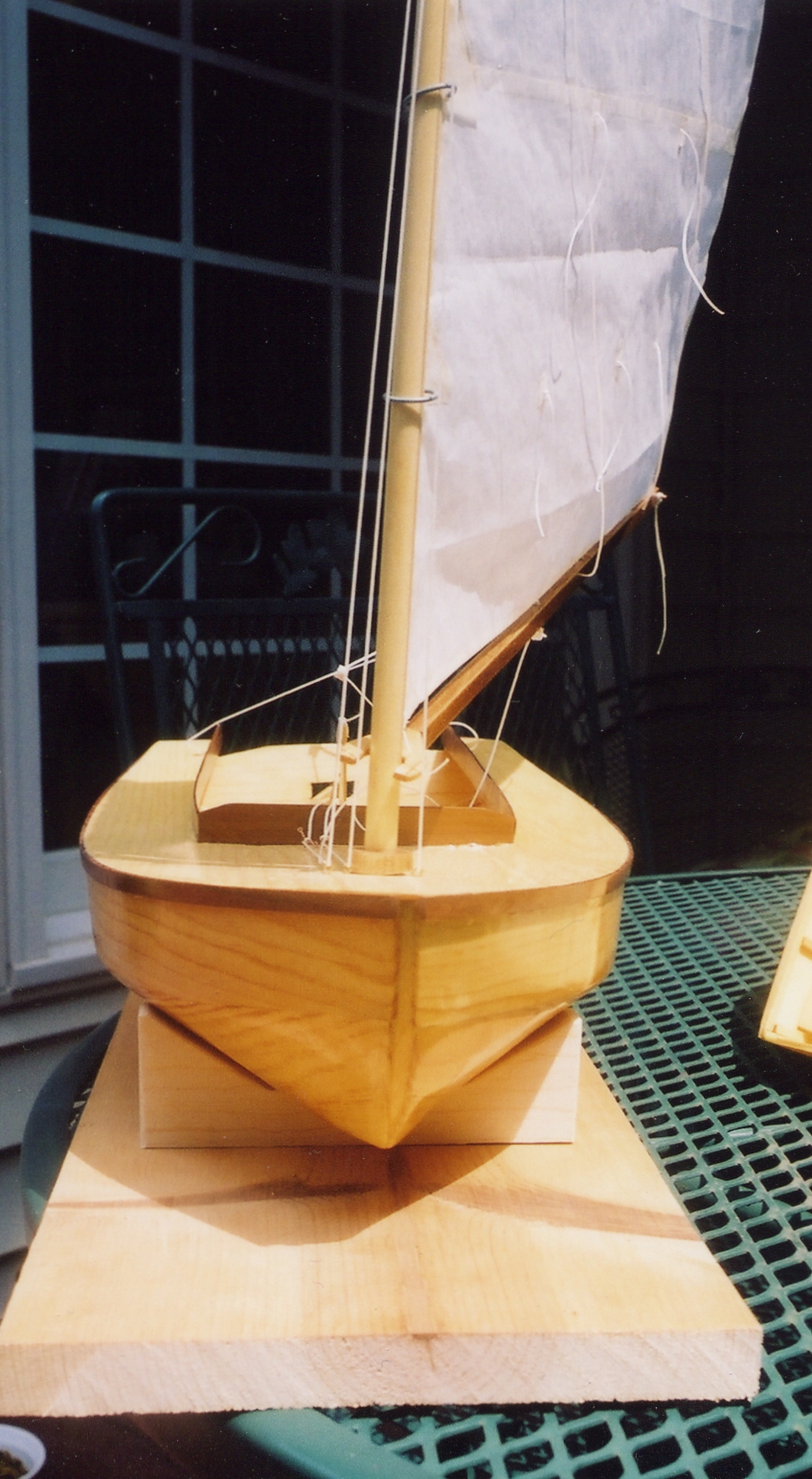

| The view aft shows the halyards and deck cleats. | The Cartopper is Dynamite Payson design. The Cartopper as a full-size boat is designed to weigh less than 100 pounds. It is a multi-function boat for small-outboard, rowing, and sailing. As a boat, based on my experience with the model, I would say it would be an excellent first boat to build. | This rowboat is resting on the frame that it was built on. The book suggests solid wood for the frame for the model but scale 2×4′s seemed to work too.The lobster boat in the background is also from the book. This one has weathered for a year outside. |

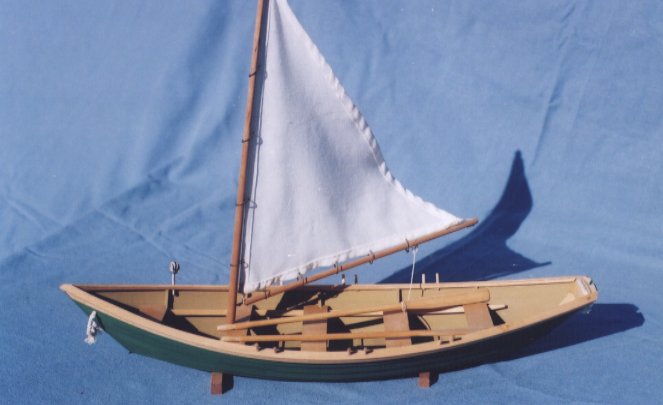

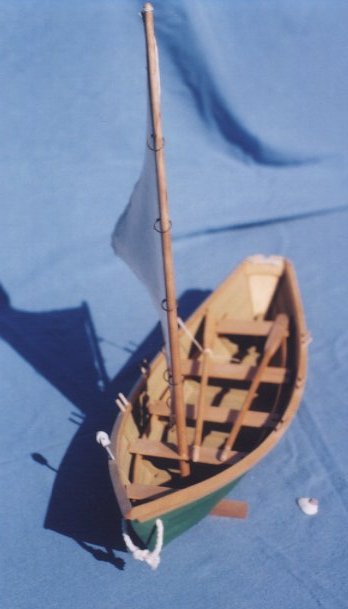

| I built this dory from a kit fromMidwest Products about 10 years ago. Midwest has excellent kits that are accurately cut and crystal clear instructions . | My wife sewed the sail. The kit comes with a piece of cloth for the sail but it did not seem right at the time. Payson’s book builds this boat a couple of different ways but not with lapped planks. | This fantail launch, also a kit (actually 3 kits, the boat, the engine, and the running gear kit which was separate when I got mine) from Midwest Products. It is glued seam construction. |

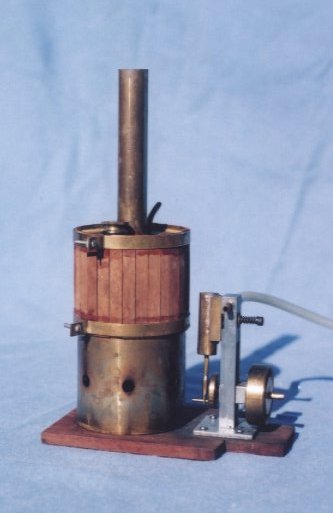

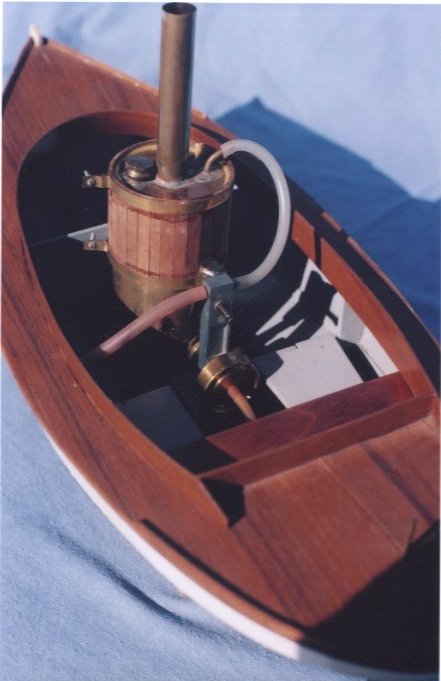

| I put a piece of teak veneer from Constantine’s on over the basswood deck. about 10 years ago. | The engine could be built with a drill press, hacksaw and file if you could find all of the stock. It is an oscillating design. The boiler is sweat soldered from copper pipe. The bottom is a brass skirt. The top has wood for insulation held on by brass straps. | The running gear kit includes a propeller, shaft, thru-the-hull tube, and the rudder. The hull is covered with fiberglass which does not come with the kit but is required for water use. |
This page was initally created by using the Tools->Create Image Gallery in Konqueror against the directory with the pictures in it. I then inserted additional rows for the descriptive material. I inserted my own stylesheet information and removed most of the Konqueror inserted style in the head info. The Create Image Gallery function is part of the konq plugins package. It appears to be present in the default Ubuntu 7.4 package. In the conversion to WordPress, the picture captions ended up on the same line as the picture. This is now fixed.
